Dump Truck Series
GDM680
-
Drive
-
Mixed Service
Longer Mileage • Heavy Duty • Excellent Traction
Engineered for superior performance, it offers exceptional traction and grip on any surface. Built to last, its durable construction ensures longevity and reliability even under heavy loads and rough conditions.
-
PLY RATING16 - 20 -
SPEED RATINGJ - L -
LOAD RATING139/137 - 156/153
Download pdf-
1 Wider tread width design and specially formulated tread compound
Delivers longer mileage
-
2 Strong casing structure realized by strong and thicker cord
Strong casing strength for increase durability and reliability under continuous load stress
-
3 Tie-bar design between center blocks
Effectively improve pattern rigidityness and thus reducing occurrence of irregular wear.
-

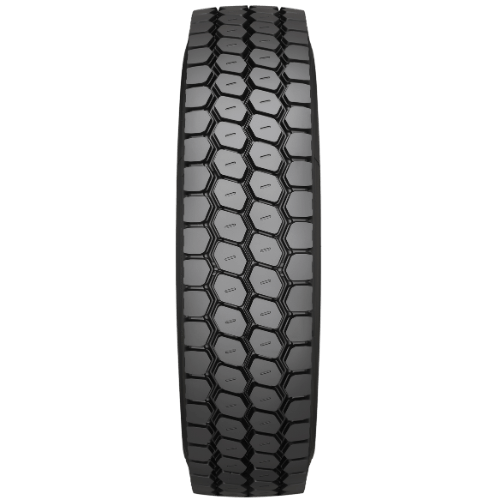

4 Big block with zigzag groove design
Provides excellent traction and braking
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
- PR 20PR
- Load Index 160/156
- Speed Rating K
- Approved Rim 8.50
- Outer Diameter (mm) 1226
- Tread Depth (mm) 20.2
- Max Load (kg) 4500/4000
- Max Pressure (kPa) 850/850
- Max Pressure (PSI) 123/123
- PR 20PR
- Load Index 160/156
- Speed Rating K
- Approved Rim 8.50
- Outer Diameter (mm) 1226
- Tread Depth (mm) 20.2
- Max Load (kg) 4500/4000
- Max Pressure (kPa) 850/850
- Max Pressure (PSI) 123/123
| Tire Size |
PR | Load Index |
Speed Rating |
Approved Rim |
Outer Diameter (mm) |
Tread Depth (mm) |
Max Load (kg) |
Max Pressure kPa
PSI
|
|
|---|---|---|---|---|---|---|---|---|---|
| 11.00R20 | 18 | 152/149 | K | 8.0 | 1096 | 18 | 3550/3250 | 930/930 | 135/135 |
| 12.00R20 | 20 | 156/153 | J | 8.5 | 1136 | 19 | 4000/3650 | 900/900 | 130/130 |
| 12R22.5 | 18 | 152/149 | L | 9.00 | 1085 | 18 | 3550/3250 | 930/930 | 135/135 |
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
| PRODUCT SEGMENT | Mixed Service |
|---|---|
 One way traveldistance (km) |
< 50 |
 On the way un-paved road (km) |
2 - 10 |
 Average speed(km/h) |
< 50 |
Assessing Vehicle Suitability
- Is your vehicle a dump truck? Is it within 300 hp?
- Are your single trips usually within 100 km?
- During single trips, are harsh road conditions such as gravel, muddy, and mining roads approximately 2-10 km long?
- Is your vehicle frequently overloaded? Is your vehicle usually over 50% of the specified weight?
- When carrying full loads, is the average speed of your vehicle less than 50 km/h?
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
6x2 Truck
4 Front Wheels + 4 Rear Wheels
4x2 Tractor
+3-Axle (1-1-3)
6x4 Tractor
+3-Axle Trailer (1-2-3)
8x4 Tractor
4 Front Wheels + 8 Rear Wheels
6x2 Tractor
+3 Axle Trailer (1-1-1-3)
