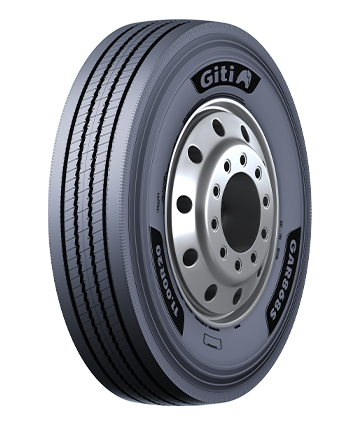

Truck / Bus & Coach Series

GAR868S

  • wheel-position-icon All Position
slider
slider
slider
slider
slider
slider

Longer mileage • Strengthened loading capability

  • PLY RATING
    18
  • SPEED RATING
    K
  • LOAD RATING
    152/149

Guard+ Technology

Noise Shield Technology

Download pdf
FEATURE & BENEFITS
  • FEATURE & BENEFITS
  • SIZE RANGE
  • condition of use
  • Main vehicle types

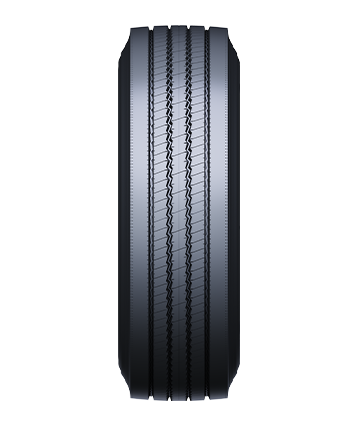

  • 1 5 rib 4 wide straight groove design

    Better resistance to wet-sliding with even tread wear and comfortable drive-handling

  • 2 Special tread compound

    Low heat generation and superb resistance to abrasion

  • 3 Crossing sipe in intermediate rib and anti stone trapping design

    Enhanced traction and tread life

  • 4 Reinforced casing and bead structure

    Improved tire damage resistance in heavy load operating conditions

GET SUPPORT

Our network of more than 3,000 dealer is connected to your needs 24/7

  • PR 20PR
  • Load Index 160/156
  • Speed Rating K
  • Approved Rim 8.50
  • Outer Diameter (mm) 1226
  • Tread Depth (mm) 20.2
  • Max Load (kg) 4500/4000
  • Max Pressure (kPa) 850/850
  • Max Pressure (PSI) 123/123

  • PR 20PR
  • Load Index 160/156
  • Speed Rating K
  • Approved Rim 8.50
  • Outer Diameter (mm) 1226
  • Tread Depth (mm) 20.2
  • Max Load (kg) 4500/4000
  • Max Pressure (kPa) 850/850
  • Max Pressure (PSI) 123/123
Tire
Size		 PR Load
Index		 Speed
Rating		 Approved
Rim		 Outer Diameter
(mm)		 Tread Depth
(mm)		 Max Load
(kg)		 Max
Pressure
kPa
PSI
11.00R20 18 152/149 K 8.0 1085 15 3550/3250 930/930 135/135

GET SUPPORT

Our network of more than 3,000 dealer is connected to your needs 24/7

PRODUCT SEGMENT
One way traveldistance (km) < 50
On the way un-paved road (km) 2 - 10
Average speed(km/h) < 50

Assessing Vehicle Suitability

  • Is your vehicle a dump truck? Is it within 300 hp?
  • Are your single trips usually within 100 km?
  • During single trips, are harsh road conditions such as gravel, muddy, and mining roads approximately 2-10 km long?
  • Is your vehicle frequently overloaded? Is your vehicle usually over 50% of the specified weight?
  • When carrying full loads, is the average speed of your vehicle less than 50 km/h?

GET SUPPORT

Our network of more than 3,000 dealer is connected to your needs 24/7

7-10m Coach

Longer than 10m Coach
