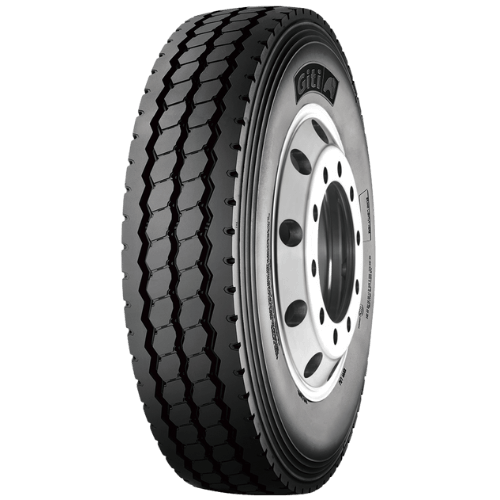

Truck Series
GAR558
-
All Position
-
Regional
Longer operating life • Irregular Wear Resistant • Excellent Durability & Damage Resistant
The GAR558 is built for tough regional routes with a focus on long-lasting performance. Its wear-resistant compound and strong four-belt construction help extend tire life, while the tread design prevents uneven wear. Special grooves keep stones out and reduce damage from road hazards, giving drivers reliable durability and smooth performance across every mile.
-
PLY RATING14 - 18 -
SPEED RATINGK - M -
LOAD RATING136/134 - 152/149
Download pdf-
1 Four belt construction
Effectively optimizes crown stiffness and tire contact surface pressure, promoting long wear life
-
2 Special wear-resistant compound
Promotes long wear life
-

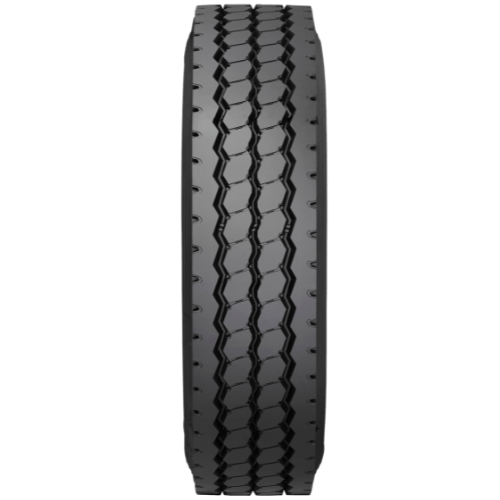

3 Optimal rib ratio and rigidity of tread pattern
Equalizes distribution of tire contact surface pressure, preventing tire from irregular wear
-
4 Big groove wall design and Anti-stone trapping groove bottom
Effectively prevents stone trapping, protecting the tire from road hazards
-
5 Shoulder void design and zigzag longitudinal groove
Provides effective heat dissipation and better resistance against damages
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
- PR 20PR
- Load Index 160/156
- Speed Rating K
- Approved Rim 8.50
- Outer Diameter (mm) 1226
- Tread Depth (mm) 20.2
- Max Load (kg) 4500/4000
- Max Pressure (kPa) 850/850
- Max Pressure (PSI) 123/123
- PR 20PR
- Load Index 160/156
- Speed Rating K
- Approved Rim 8.50
- Outer Diameter (mm) 1226
- Tread Depth (mm) 20.2
- Max Load (kg) 4500/4000
- Max Pressure (kPa) 850/850
- Max Pressure (PSI) 123/123
| Tire Size |
PR | Load Index |
Speed Rating |
Approved Rim |
Outer Diameter (mm) |
Tread Depth (mm) |
Max Load (kg) |
Max Pressure kPa
PSI
|
|
|---|---|---|---|---|---|---|---|---|---|
| 8.25R20 | 16PR | 139/137 | K | 6.5 | 974 | 14 | 2430/2300 | 930/930 | 135/135 |
| 9.00R20 | 16PR | 144/142 | K | 7.0 | 1019 | 14.5 | 2800/2650 | 900/900 | 130/130 |
| 10.00R20 | 18PR | 149/146 | K | 7.5 | 1054 | 15 | 3250/3000 | 930/930 | 135/135 |
| 11.00R20 | 18PR | 152/149 | K | 8.0 | 1085 | 15.3 | 3550/3250 | 930/930 | 135/135 |
| 9R22.5 | 14PR | 136/134 | M | 6.75 | 974 | 14 | 2240/2120 | 830/830 | 120/120 |
| 10R22.5 | 16PR | 144/142 | M | 7.50 | 1019 | 14.8 | 2800/2650 | 900/900 | 130/130 |
| 11R22.5 | 16PR | 148/145 | M | 8.25 | 1054 | 15.8 | 3150/2900 | 850/850 | 123/123 |
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
| PRODUCT SEGMENT | Regional |
|---|---|
 One way traveldistance (km) |
< 50 |
 On the way un-paved road (km) |
2 - 10 |
 Average speed(km/h) |
< 50 |
Assessing Vehicle Suitability
- Is your vehicle a dump truck? Is it within 300 hp?
- Are your single trips usually within 100 km?
- During single trips, are harsh road conditions such as gravel, muddy, and mining roads approximately 2-10 km long?
- Is your vehicle frequently overloaded? Is your vehicle usually over 50% of the specified weight?
- When carrying full loads, is the average speed of your vehicle less than 50 km/h?
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
6x2 Truck
4 Front Wheels + 4 Rear Wheels
4x2 Tractor
+3-Axle (1-1-3)
6x4 Tractor
+3-Axle Trailer (1-2-3)
8x4 Tractor
4 Front Wheels + 8 Rear Wheels
6x2 Tractor
+3 Axle Trailer (1-1-1-3)
