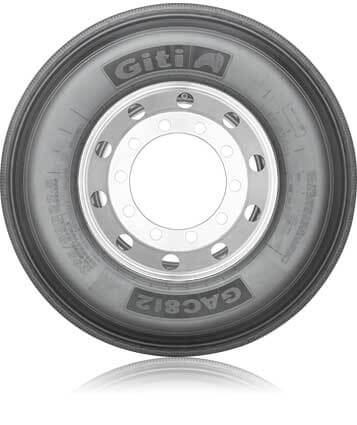

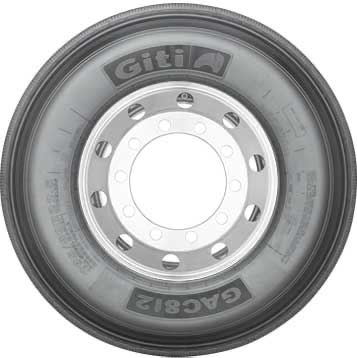

Bus & Coach Series

GAC812

  • wheel-position-icon All Position
  • category-icon Long Haul
slider
slider
slider
slider
slider
slider

Excellent Mileage • Lower Fuel Consumption • Safety & Better in Handling

  • PLY RATING
    18
  • SPEED RATING
    M
  • LOAD RATING
    149/146 - 152/149

Guard+ Technology

Noise Shield Technology

Download pdf
FEATURE & BENEFITS
  • FEATURE & BENEFITS
  • SIZE RANGE
  • condition of use
  • Main vehicle types

  • 1 Four belt construction

    Increases casing and tread stiffness, optimizes contact surface pressure, minimizing tire deformation for longer wear

  • 2 Wider tread width design

    Larger tread volume for extended wear life

  • 3 Advanced compound for long haul cool running application

    Provides superior wear resistant and low heat generation

  • 4 Optimized rib ratio and high pattern rigidity

    Effectively improves pattern rigidity and force distribution, reducing occurrence of irregular wear

  • 5 Four circumferential groove design

    Delivers better steering and stability, suited for all position application and long haul service

  • 6 Resilient zig-zag center grooves

    Provides better controllability and better resistance against road damages

  • 7 Sipe design on tread

    Delivers enhanced wet grip of tread

GET SUPPORT

Our network of more than 3,000 dealer is connected to your needs 24/7

  • PR 20PR
  • Load Index 160/156
  • Speed Rating K
  • Approved Rim 8.50
  • Outer Diameter (mm) 1226
  • Tread Depth (mm) 20.2
  • Max Load (kg) 4500/4000
  • Max Pressure (kPa) 850/850
  • Max Pressure (PSI) 123/123

  • PR 20PR
  • Load Index 160/156
  • Speed Rating K
  • Approved Rim 8.50
  • Outer Diameter (mm) 1226
  • Tread Depth (mm) 20.2
  • Max Load (kg) 4500/4000
  • Max Pressure (kPa) 850/850
  • Max Pressure (PSI) 123/123
Tire
Size		 PR Load
Index		 Speed
Rating		 Approved
Rim		 Outer Diameter
(mm)		 Tread Depth
(mm)		 Max Load
(kg)		 Max
Pressure
kPa
PSI
295/80R22.5 18 152/149 M 9.00 1044 14.8 3550/3250 900/900 130/130 TL
11R22.5 18 149/146 M 8.25 1054 15 3250/3000 930/930 135/135 TL
11R22.5 18 149/146 M 8.25 1054 15 3250/3000 930/930 135/135 TL

GET SUPPORT

Our network of more than 3,000 dealer is connected to your needs 24/7

PRODUCT SEGMENT Long Haul
One way traveldistance (km) < 50
On the way un-paved road (km) 2 - 10
Average speed(km/h) < 50

Assessing Vehicle Suitability

  • Is your vehicle a dump truck? Is it within 300 hp?
  • Are your single trips usually within 100 km?
  • During single trips, are harsh road conditions such as gravel, muddy, and mining roads approximately 2-10 km long?
  • Is your vehicle frequently overloaded? Is your vehicle usually over 50% of the specified weight?
  • When carrying full loads, is the average speed of your vehicle less than 50 km/h?

GET SUPPORT

Our network of more than 3,000 dealer is connected to your needs 24/7

Longer than 10m Coach
